Internship, Technical Interface — Khapaudi, Pokhara

  • Type: 99-room resort on a lakeside slope

A 99-room resort with a traditional character on a steeply contoured lakeside site in Khapaudi, Pokhara, designed during the three-month internship of the B.Arch seventh semester.

Accommodation units were first arranged in clusters along the contours, then the access road was threaded through the steep slope. The diagrams show the stage-by-stage development of the plan.

My role: Preliminary site planning and 3D massing.

3D massing of the resort: clusters of rooms with orange roofs around a central pool on a green hillside.

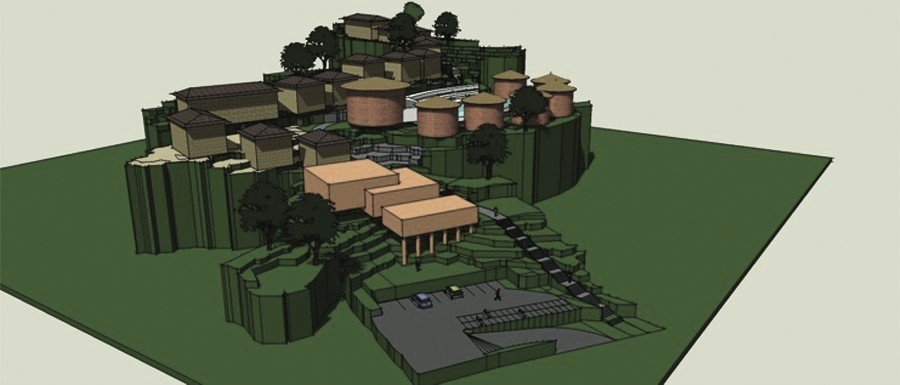

3D massing from another angle, showing terraces stepping down the slope.

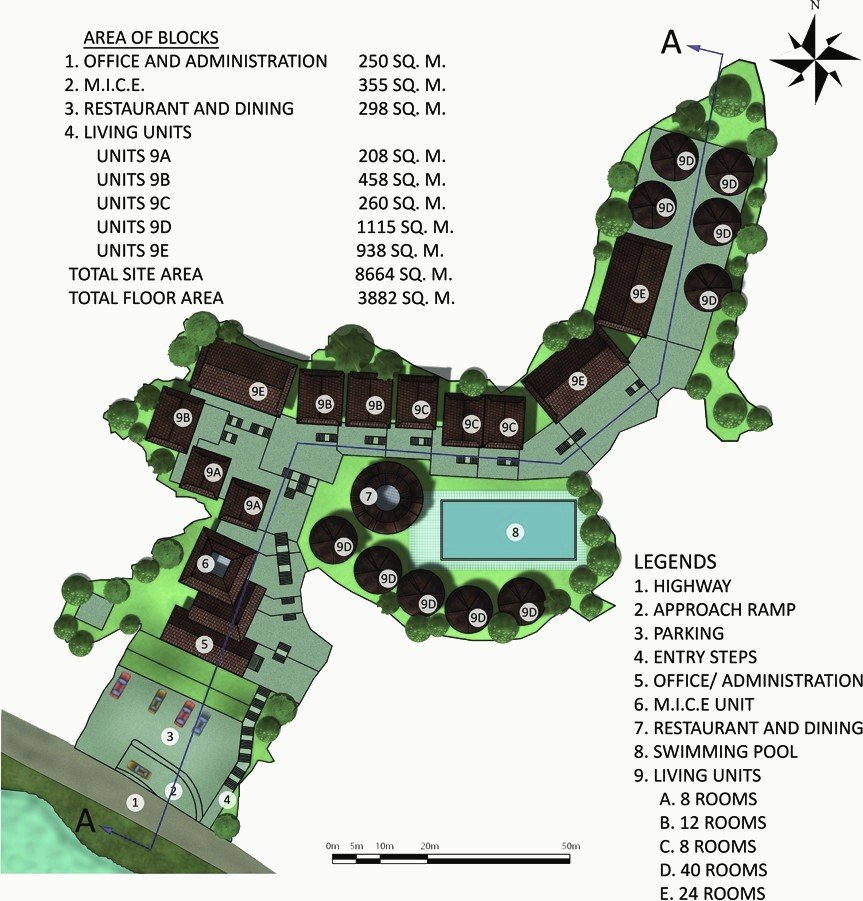

Site plan of the resort with legend of areas and room types.
Site plan

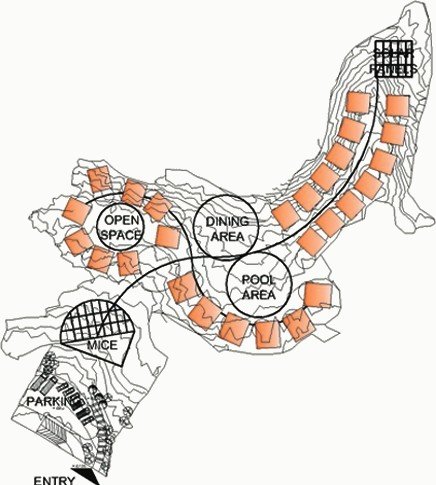

Planning stage 1: zoning bubbles for open space, cluster area and pool area.
Stage 1

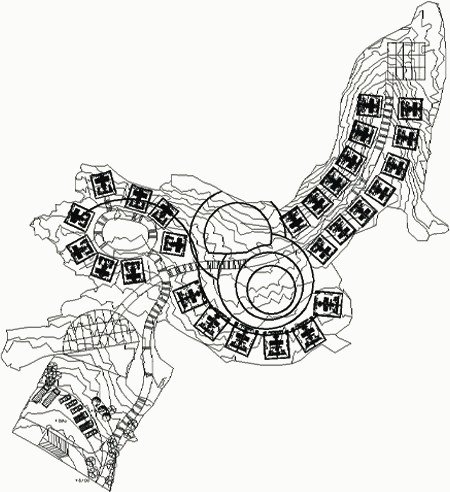

Planning stage 2: room clusters arranged along the contours.
Stage 2

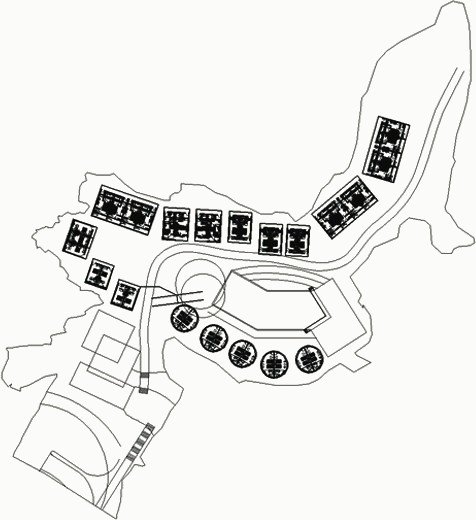

Planning stage 3: final cluster layout with access road.
Stage 3
